General Introduction
In the era of Industry 4.0, the demand for automation is continuously increasing. The pallet chain conveyor line is one of the advanced solutions that helps optimize internal logistics processes in factories, warehouses, and distribution centers.
With precise, continuous transport capability and high load capacity, this system is widely applied in industries such as mechanical engineering, machine manufacturing, electronics, food, logistics, and more.
Structure of the Pallet Chain Conveyor Line
The chain conveyor system typically includes:
Conveyor frame: Made from SS400 steel with powder coating or stainless steel 304, rust-resistant and high-strength.
Chain system: Double chains (commonly 50#, 60#, 80#), arranged on both sides to support and pull the pallet.
Drive unit: Gear motor ranging from 0.1kW to 2.2kW, with speed adjustable via a variable frequency drive (VFD).
Control devices: Electrical cabinet, object sensors, limit switches, timers, emergency stops.
Side guides: Two rails to keep pallets aligned during movement.
Adjustable legs: Height-adjustable, with fixed bolts or caster wheels.
Key Technical Features
Conveyor width: Customizable from 500mm to 1200mm (measured between chain centers).
Conveyor length: Designable from 500mm up to 20,000mm.
Transport speed: Up to 15 meters per minute, easily adjustable via VFD.
Operating voltage: 220V, 380V, 200V, 100V at 50Hz or 60Hz.
Motor position options: Mounted on top, bottom, side, or inside the conveyor frame.
High load capacity: Supports weights from 300kg to over 2000kg depending on design.
Outstanding Advantages
✅ Fully automated – reduces labor and boosts production efficiency
✅ Customizable design – suitable for various pallet types and factory scales
✅ Stable operation with low maintenance – thanks to a robust structure and durable motors
✅ High safety – equipped with sensors, emergency stops, and overload protection
✅ Flexible integration – easy to connect with roller conveyors, turntables, robotic systems, or packing machines
Typical Applications
Electronics and mechanical component assembly lines
Pallet transportation in logistics warehouses
Automotive, motorcycle, and industrial machinery manufacturing
Packaging and palletizing production lines
Customer-Specific Options
Adjust length and width to fit pallet dimensions
Choose chain types (50#, 60#, 80#) based on load and operation frequency
Select paint color, motor location, and guide rail arrangement
Optional smart controls: PLC, pallet detection sensors, error alerts
Choose fixed legs or mobile caster wheels
Why Choose Our Product?
On-site technical consultation and practical survey
Direct manufacturing – no intermediaries

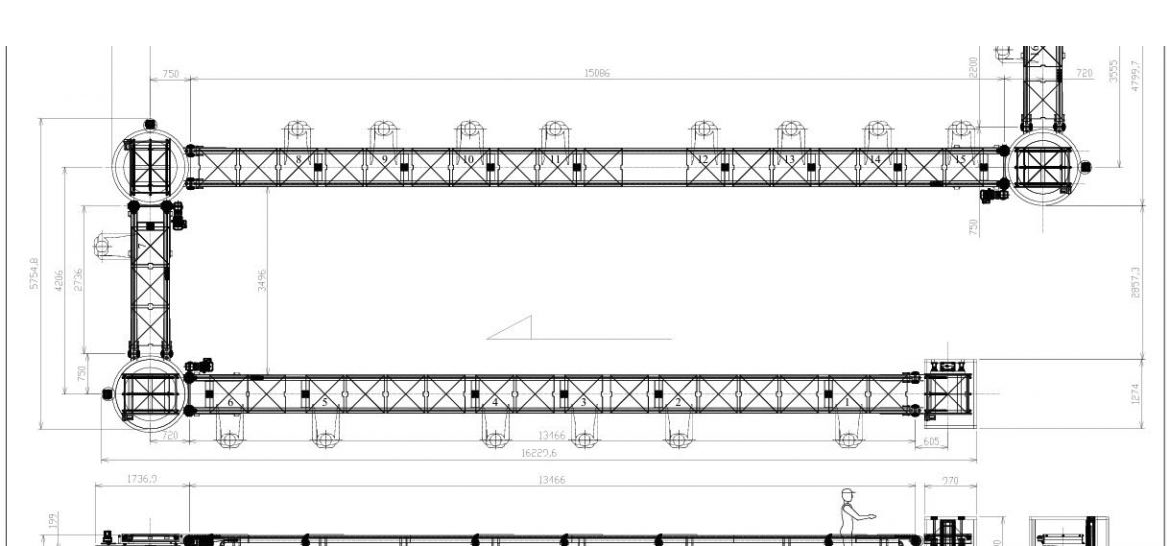

Custom design based on detailed drawings and requirements
Long-term warranty with 24/7 technical support
Experienced engineers specialized in industrial conveyor system design
Conclusion
The pallet chain conveyor line is the optimal solution for businesses seeking a professional, flexible, and safe transport system. This product not only meets technical requirements effectively but also enhances productivity, reduces labor costs, and elevates manufacturing automation.
Contact us now for personalized conveyor line design consultation tailored to your business needs!
