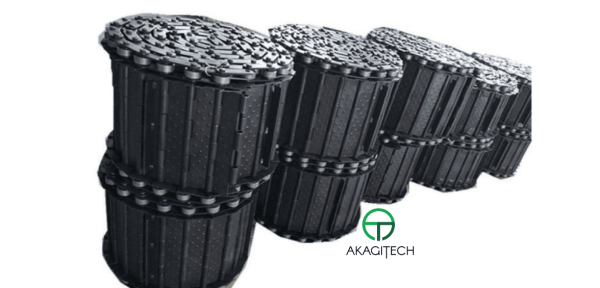

🔧 Technical Specifications – VNAT Series Hinged Belt Conveyors
🔹 VNAT 2052 (Pitch 31.75mm)
Roller Chain Types: S, R
Side Wings: Pin-assembled or welded
Hinge Plate: Flat, embossed, or perforated
Applications: Small CNC machines, compact machine tools
Bending Radius & Weight: Please contact for consultation
🔹 VNAT 2062 (Pitch 38.1mm)
Roller Chain Types: S, R
Side Wings: Pin-assembled or welded
Hinge Plate: Flat, embossed, or perforated
Applications: Small CNC machines, compact machine tools
Bending Radius & Weight: Available upon request
🔹 VNAT 2082 (Pitch 50.8mm)
Side Wings: Pin-assembled or welded
Hinge Plate: Flat, embossed, or perforated
Applications: Small CNC machines, chip conveyors
Bending Radius & Weight: Available upon request
🔹 VNAT 2102 (Pitch 63.5mm)
Roller Chain Types: S, R, F
Side Wings: Pin-assembled or welded
Hinge Plate: Flat, embossed, or perforated
Applications: CNC machinery, long-distance material conveying
Bending Radius & Weight: Contact us for detailed data
🔹 VNAT 2122 (Pitch 76.2mm)
Roller Chain Types: S, R, F
Side Wings: Pin-assembled or welded
Hinge Plate: Flat, embossed, or perforated
Applications: Long-distance transport of chips, scrap, and waste materials
Bending Radius & Weight: Custom specifications available
🌟 Key Advantages of Akagitech Hinged Belt Conveyors
✅ High load-bearing capacity, built for heavy-duty industrial operations
✅ Easy to clean, low maintenance – ideal for conveying sharp or oily scrap
✅ Highly customizable: chain type, side wings, and hinge plates tailored to your needs
✅ Perfect integration with CNC machines, machining centers, lathes, milling systems, and automation lines
✅ High precision engineering reduces jamming and ensures smooth, continuous material flow
🏭 Typical Applications
CNC metal cutting machines
High-precision machining centers
Automatic scrap collection systems
Post-machining burr removal conveyors
Auxiliary mechanical processing plants
