🔹 Product Introduction

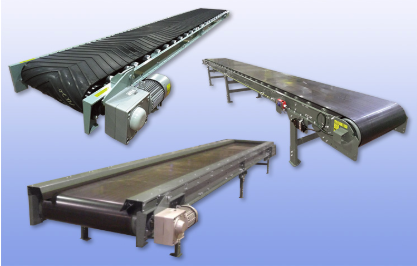

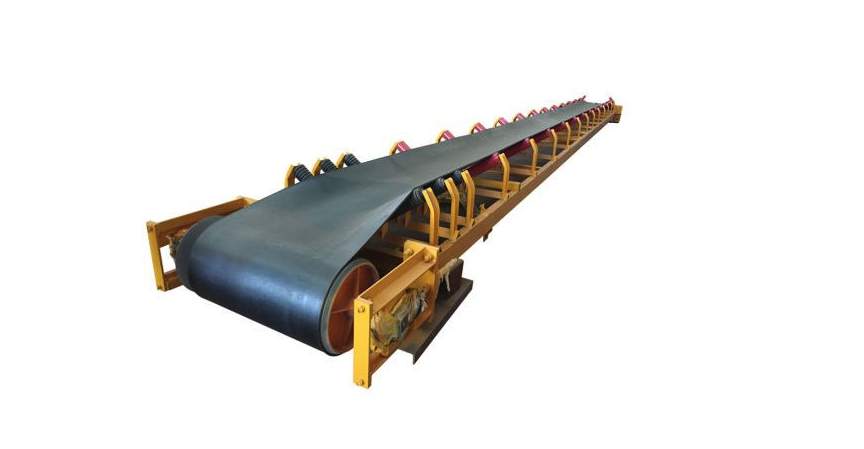

The ATVG-F-200-6.0 is a flat rubber belt conveyor designed for diverse industries, ranging from light to heavy-duty applications. Constructed with a sturdy steel frame (powder-coated or stainless steel) and a durable rubber belt, this conveyor is an optimal choice for factories requiring high load capacity and fast conveying speeds for production, sorting, packaging, and transportation tasks.
🆔 Product Code Explanation
ATVG: Flat rubber belt conveyor
F: Straight design (customizable to L or Z shapes)
200: Belt width 200mm
6.0: Conveyor length 6000mm (6 meters)
⚙️ Construction & Materials
Rubber belt: From single to 5-layer ply, chosen based on load and working conditions
Frame: Steel SS400 with powder coating or stainless steel 304
Frame thickness: 2mm to 4.5mm
Machine shape: Straight (F), L-shaped (L), or Z-shaped (Z)
Motor power: 0.1kW to 2.2kW
Motor position: Flexible placement on top, bottom, or side
Control system:
ON/OFF switch
Variable frequency drive (VFD) for speed adjustment
Timer
Emergency stop switch
Optional sensors and pneumatic pistons
📐 Custom Technical Specifications
Belt width: 200mm to 1000mm
Conveyor length: 500mm to 20,000mm
Operating speed: Up to 30 m/min, adjustable
Operating voltage: 100V – 380V (50Hz/60Hz)
Load capacity: Customized based on belt type and frame design
Frame paint: Standard or customized according to brand colors
💡 Key Features
✅ Durable rubber belt with excellent abrasion resistance and ability to withstand harsh environments
✅ Quiet operation, high load capacity, and flexible speed adjustment
✅ Customizable design to fit production space and workflow requirements
✅ Suitable for dry, dusty, high-temperature, or impact-prone environments
✅ Compatible with automated systems and industrial robots
📦 Applications
🏭 Assembly lines for electronics, components, motorcycles, and electric bikes
♻️ Industrial waste handling and scrap sorting
👟 Garment and footwear industries for semi-finished product transport
📦 Packaging, product sorting, and separation lines
🛢️ Transport of hot plastics, bottles, and light containers
🌲 Wood processing and harvesting industries
🛠️ Optional Technical Upgrades
Adjustable legs: height, tilt angle, with casters or fixed by bolts
Flexible speed control via VFD
Electrical control: sensors, timers, emergency stop buttons
Rubber belt options: with scrapers or sidewalls to prevent slipping
Side guards: stabilize products on the belt
Power supply: 100V, 220V, 380V – 50Hz or 60Hz
Motor location: flexible based on factory layout
Load capacity: customized per product requirements
Frame paint: brand color matching
🔧 Advantages of Ordering from Akagitech
🛠️ Custom designs tailored to specific application needs
🌐 Easy integration into existing production lines
🔄 Regular maintenance and replacement services for belts and motors
📞 Dedicated technical consultation and after-sales support
🚚 Nationwide delivery with installation assistance
