Introduction to Pallet Turntable Conveyor
In automated production systems, moving pallets in multiple directions is an essential requirement. The pallet turntable conveyor is designed to effectively solve this challenge, helping businesses optimize production lines and save installation space.
This device allows pallets to rotate at fixed angles such as 90°, 180°, or customizable angles, thereby changing the pallet’s movement direction without the need for cranes or manual labor.
Structure of the Pallet Turntable Conveyor
The pallet turntable conveyor consists of the following main components:
Roller conveyor or chain conveyor: Selected based on pallet type and load capacity.

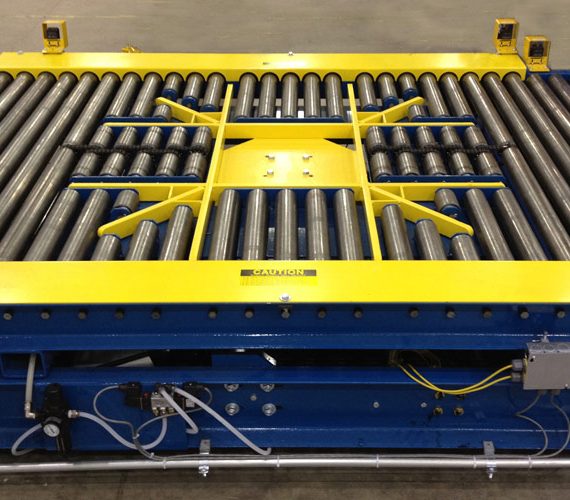

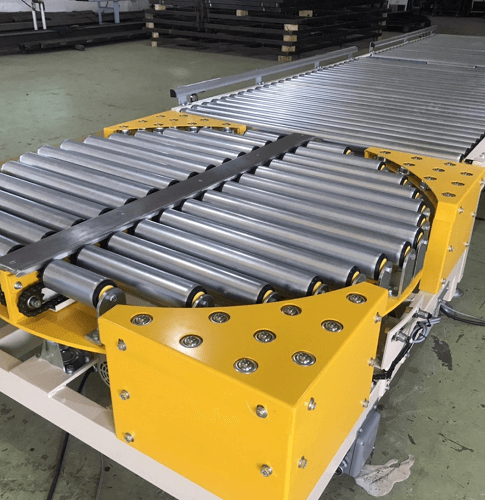

Turntable: The tabletop can rotate thanks to a geared motor with position sensors integrated.
Control mechanism: PLC or relay to automate operation according to programmed instructions.
Conveyor frame: Made of sturdy powder-coated steel or stainless steel, with good load capacity.
Position stop sensors: Ensure the turntable stops precisely at the desired angle.
Operating Principle
Pallets are conveyed to the turntable via the conveyor.
Sensors detect the presence of a pallet → signal sent to the controller.
The turntable automatically rotates to the preset angle (90°, 180°, etc.).
After rotation, the pallet continues moving on the new conveyor line.
Outstanding Advantages
✅ Fully automates the pallet direction-changing process
✅ Saves factory space thanks to flexible direction changes
✅ High accuracy in pallet rotation and positioning
✅ Increases productivity and reduces labor
✅ Flexible design customizable to layout plans
✅ Easily integrates with existing conveyor systems
Reference Technical Specifications
Pallet load capacity: 300 – 2000 kg
Rotation angle: 90°, 180°, 360° (customizable)
Turntable size: Customizable according to pallet size (e.g., 800×800 mm, 1000×1000 mm)
Rotation speed: 5 – 15 revolutions per minute
Operating voltage: 380V/3Phase or as requested
Frame material: CT3 steel with powder coating or stainless steel 304
Control system: Siemens or Mitsubishi PLC, or standard relay
Practical Applications
Automated packaging and assembly lines
Automated warehouse logistics
Automotive, electronics, food, and beverage industries
Production lines requiring multiple movement directions without using robots or cranes
Why Choose Our Pallet Turntable Conveyor?
On-site design consultation and survey based on actual layout
Custom manufacturing tailored to customer requirements
High-quality components imported from official suppliers
Installation and maintenance support nationwide
Experienced technical team specializing in automation
Additional Services
Technical design drawings and installation layout
Complete installation and on-site operation training
Providing comprehensive conveyor system solutions
Scheduled maintenance contracts and long-term warranty
Conclusion
The pallet turntable conveyor is an intelligent and indispensable solution in modern production lines where space and efficiency are top priorities. If your business aims for automation, cost savings, and productivity improvement, contact us for the best tailored solution.
